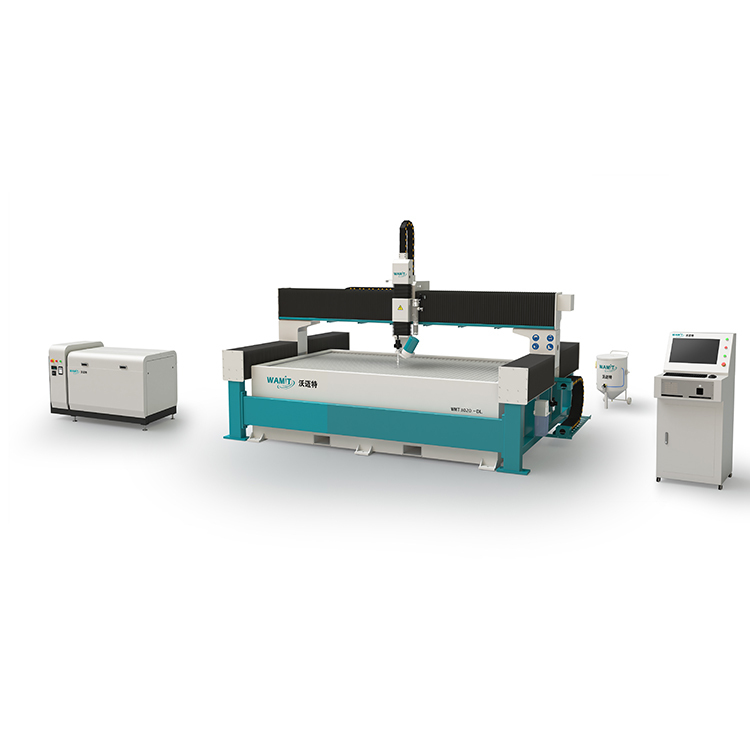

3000*2000mm Low Cost Water Jet Glass Cutting Machine With 60k Direct Drive Pump


The gantry-style balanced design structure is more stable and improves the accuracy of the machine. Ultra-high pressure cutter head, which can be cut with pure water and sand. It has 3-axis and 5-axis cutter heads for vertical and non-vertical cutting with a maximum cutting angle of 60 degrees. The X/Y axis adopts the labyrinth waterproof and sandproof double protection system. The X/Y axis adopts Taiwan's high-quality guide rail and Swedish ball screw. It is durable and the Z-axis fully enclosed structure is guaranteed to be free from water and sand. Heavy-duty machine tools, high-temperature forging, so that the machine will not be deformed during use. China's first generation of self-designed ultra-high pressure servo direct drive pumps are more energy efficient, environmentally friendly and light, and ultra high pressure booster pumps are easier to operate and maintain. The CNC control system uses the WEIHONG professional waterjet cutting CNC system. we also have ITALY imported software which support more than 20 languages.

If use our 15kw direct drive pump, will save 60% electricity cost.

Cutting materials



More advantages
1. Automatic lubrication system from the Valley of Japan.
2. The internal components are selected from Schneider International brand, with first-class quality and reliable work.
3. Way of drive : Servo ( drives and motors are from Japan YASKAWA ).
4. High precision, Ensure cutting results.
5. Provide customizable services.
6. After-sales Service: Field maintenance and repair service, Online support, Field installation, commissioning and training, Video technical support, Free spare parts.
7.ECL cutting head



Control system
Adopt industrial PC
Dedicated water jet cutting software with graphic simulation running function, graphic input automatic programming function. • Support for DXF files. • Support forward and reverse processing functions. • Uniform speed control function. • Two modes of segmentation and smooth machining. • Automatic processing with small arc speed. • Coordinate recovery function after power off. • Double lift speed parameter function. • With cycle processing. • Convenient pause to continue and start machining in any segment. • Free time delay setting. • Apply SIEMENS PLC instead of relay, buttons are Schneider.
Can provide Italy imported ECS software which can provide more than 20 languages

Direct drive pump

Control Theory of Servo Direct Drive Pump:


Direct drive pump is a device that directly converts electric energy into hydraulic energy by a crankshaft connecting rod mechanism, and the energy conversion ratio is as high as 97% or more. The power conversion ratio of the conventional asynchronous motor is 80% and that of permanent-magnet servo motor is 97%; therefore, replacing asynchronous motor by permanent-magnet servo motor greatly improves the power consumption of the intensifier, keeping the conversion rate above 90%; while the energy conversion rate of the conventional hydraulic intensifier is only 56% (This conversion rate is only in the state of full work.). In the traditional hydraulic system, the asynchronous motor still keeps turning when the waterjet is not cut (such as the movement of the cutting head, changing the cutting material, etc.), and the oil pump is still in working state. Although the pressure of the oil pump is not high at this time, still there is 30% power loss. Even servo power oil pump is used, the asynchronous motor still has 30% loss if it maintains its own rotation and power magnetic field.


Servo Direct Drive Pump

1. Selection of motors: 15kw, can save power consumption above 60%

2. Pressure conversion methods: can save energy about 35%.

3. Cutting efficiency: greatly improved by 10%-20%


SPECIFICATIONS FOR DIRECT DRIVE PUMP
Model
WMT SDD 20
Max Pressure
420MPa(60000Psi)
Continuous Operating Pressure
350MPa-380MPa(46000 Psi -55000 Psi)
Max Diameter Of Orifice
0.3mm(0.012)
MAX.Water Flow Rate
3.5L/min
Influent Pressure
0.4MPa
Power
15KW(20HP)
Power Supply
380VAC, 50Hz , 3 Phase
Size
1600x800x900mm
Abrasive feeder

• 170 liter capacity • High-precision sensors alert operators when they need to replenish sand • Safety relief valve • Working pressure: 0.2-0.3MPa • Water separator
No need electronic control, simple operation, reliable, maintenance-free. Can supply the cutting sand quantity . Need less than 0.2Mpa compressed gas pressure. Provide sand storage for the water jet cutter and automatically transfer the sand to the sand bucket. Can increase the automation of the equipment and reduce the labor intensity of the operator.

OTHER OPTIONALS

 AC 5 AXIS CUTTING HEAD ADVANTAGE

1.The cutting resultis much better. When cuttingshaped sharp corners or continuous sharp corners, there is no obvious zero point
at the corners2.A wide range of processes. It can makecylindrical parquet, large angle chamfer and other drawing which AB
five-axis waterjet can not be completed3.High processing efficiency. The C axis rotates infinitely, and the corner speed is fast,
which improves the processing efficiency.

remote controller

water softener

oil chiller

laser height tracking system

abrasive sand removal system

60000psi direct drive pump

Size
Can be customized to any size, mini platform or ultra-large platform or other size can be customized.
SPECIFICATIONS FOR WATER JET CUTTING MACHINE
Model
WMT 1010
WMT 2050
WMT 3020
WMT 3080
WMT 5030
Cutting table
X axis(mm)
1200
2200
3200
3200
5200
Y axis(mm)
1200
5200
2200
8200
3200
Max.cutting range(mm)
X axis(mm)
1000
2000
3000
3000
5000
Y axis(mm)
1000
5000
2000
8000
3000
Z axis(mm)
250
250
250
250
250
Production Process


Heat treatment

620 degrees in the furnace for 5 hours, down to 300 degrees for 3 hours, then naturally cooled in the furnace.eliminate internal stress in the welded frame.no deformation occurs during frame use,guarantee better cutting precision.



Shot blasting and powder coating

Remove impurities such as surface oxide scale to improve appearance quality.it can improve the fatigue fracture resistance of materials, prevent fatigue failure, plastic deformation and brittle fracture, and improve fatigue life.



Test

Test the straightness and parallelism of linear guide rail with precision measuring instruments.

Guaranteed higher precision when the equipment is running after the linear guide rail is installed.





Calibration

Calibrating equipment precision with a laser interferometer.guaranteed more accurate cutting precision.

Cutting Speed
                                 Material
                                Specification
Speed(mm/min)
Servo direct drive pump
Hydraulic intensifier pump
                                                                                                                                                                                     Carbon steel plate
10mm
330
270
12mm
280
220
14mm
240
180
16mm
200
140
20mm
170
110
22mm
140
85
                                          Aluminum plate
12mm
800
600
30mm
200
160
                                                                                                                                      Glass
5mm
2000
1600
8mm
1800
1400
10mm
1500
1100
12mm
1200
900
14mm
1000
700
                                   Ceramic tile
12mm
2000
1500
14mm
1400
900
Microcrystal stone
16mm
1200
900
                                            Marble
25mm
1000
800
30mm
800
600
Our Customer
Packaging & Shipping
FAQ


1. Are you manufacturer or trading company?

We are manufacturer of water jet cutting machine in JINAN city, Shandong, China.

2. What kind of material does your water jet cutting machine can cut?

There are plenty materials our water jet cutting machine can cut, such as stone, ceramic, quartz, glass, foam, plastic, rubber, copper, brass, aluminum, mild steel, pre-hardened steel, titanium, inconel and cast alloy.

3. What's your CNC water jet cutting machine's max. cutting thickness?

Generally speaking, if cut steel the max thickness of our water jet cutting machine can be up to 240mm, but we suggest cut no more than 150mm for smooth cutting. Now our Z axis distance is 170mm, we can customize for customers. Regular thickness please refer to: Marble is 0-120mm; granite is 0-110mm; tiles are 0-40mm; glass and mosaic is 0-80mm; steel, stainless steel, copper is 0-60mm; aluminum is 0-80mm; plastic, acrylic, foam is 0-200mm.

4. How we supply after-service?

Some countries we have after-service department, we will provide local service, if have no local service, we will arrange engineer for overseas installation and training. The installation and training time is generally 7-10 days. And we also can provide installation videos.

5. What's your delivery time?

Generally speaking is 30 days. if have stock, 7-15 days.
